无励磁盘形分接开关

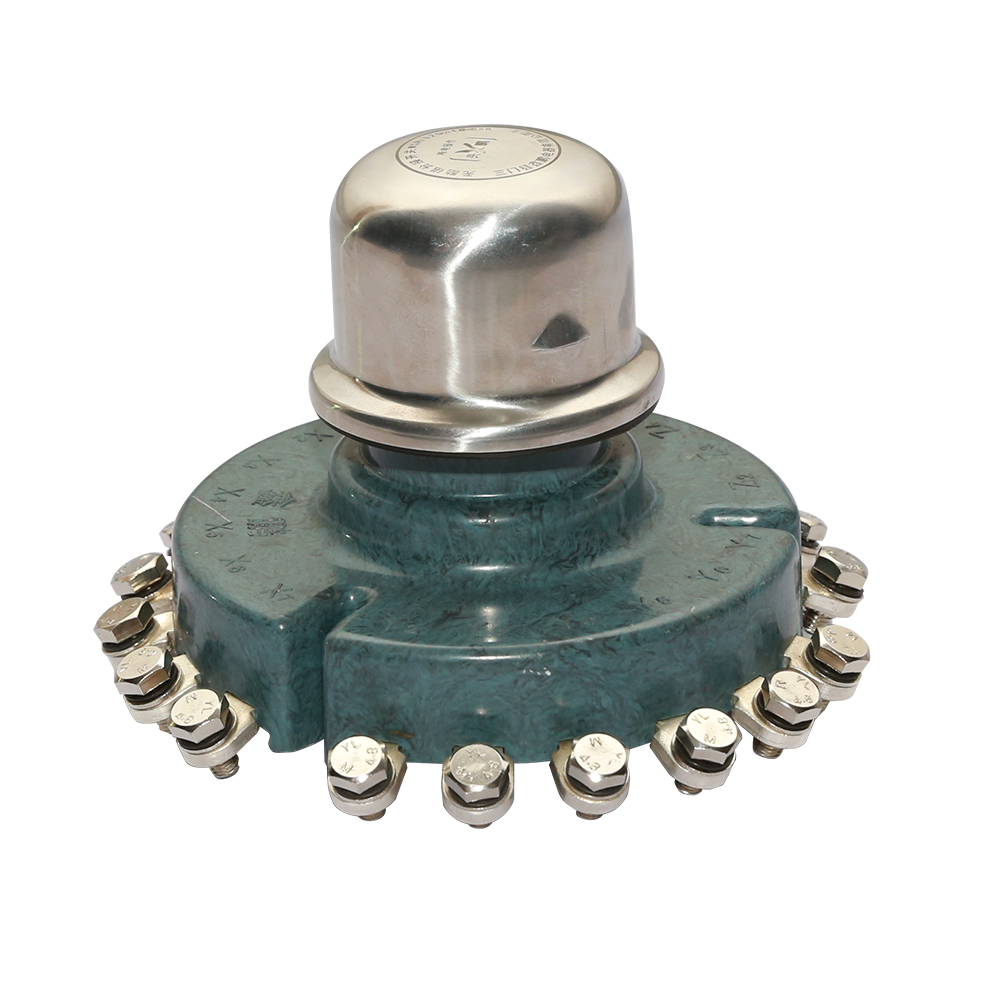

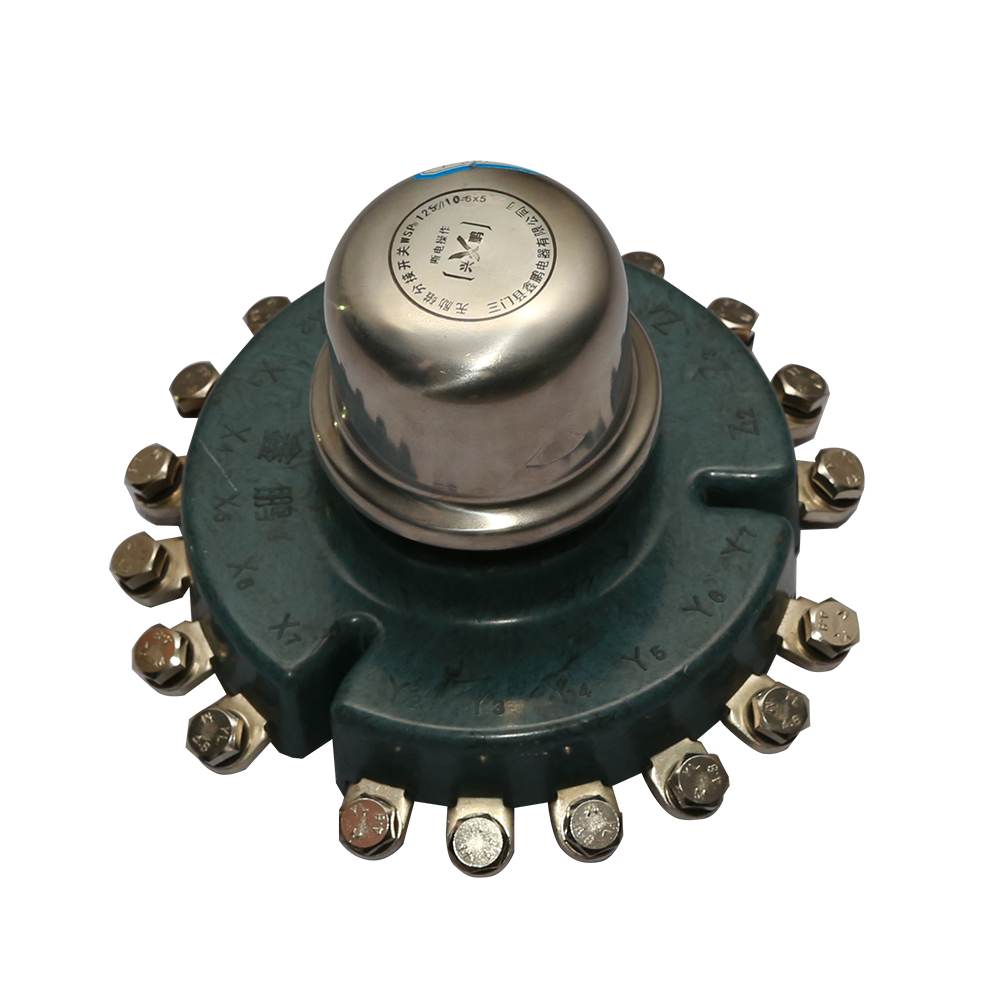

开关采用了新结构、新材料、新工艺(开关箱盖下部高度降低了50~80mm)，具有结构合理、手感强、转动灵活、到位准确、密封性能好、接触电阻小等优点，是目前我国无励磁分接开关更新换代产品。本开关有三相、单相两种，适用于频率50、60Hz,设备最高电压12、40.5、72.5kV,额定电流63、125、250、400A的三相、单相油浸式电力变压器，可直接固定在变压器箱盖或箱壁处，在无励磁状态下分接调换。

开关型号、安装尺寸对照表

Type of tap change and in stllat on sizechart

电流为63A的分接开关适用于5~8mm的变压器箱盖（单相除外）：

电流为125A的分接开关适用于5~10mm的变压器箱盖；

动触头结构有夹片式及滚动式，夹片式无代号，顾客若要滚动式，请在订货时加以说明。

我们可以根据顾客要求，制造箱盖下加高的分接开关：

顾客若有其它特殊要求，请在订货加以说明。

The current of 63A tap-changer is applicable to 5~8mm transformer cover (except single phase):

The current of 125A tap-changer is applicable to 5~10mm transformer cover.

The moving contact's structure is clamping type or rolling type.The clamping type has no code number.If you need the rolling type,please

illustrate in ordering.

We can manufacture the tap-changer with raised highness beneath the cover in accordance with the customer's requirement.

If you have other specific requirements please detail it in ordering.

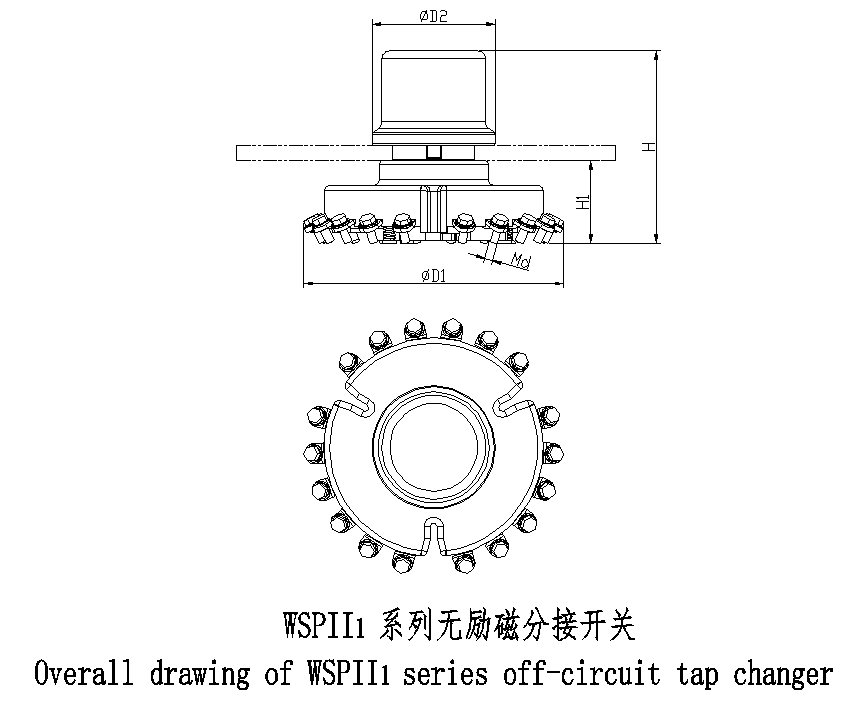

WSP II1系列无励磁分接开关 (盘型)
WSP II1Series de-energized Tap-changer ( Tray form)

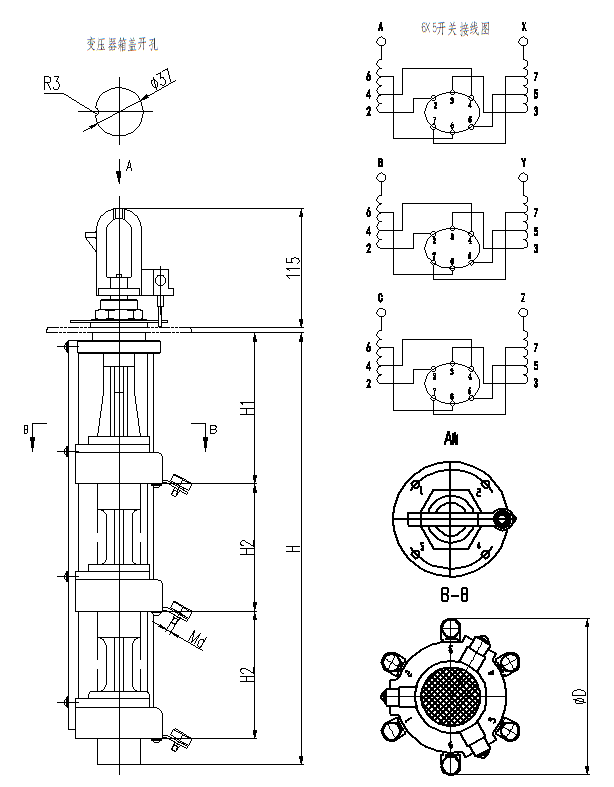

WSP II₂ 63/10~40.5-6x5盘型无励磁分接开关

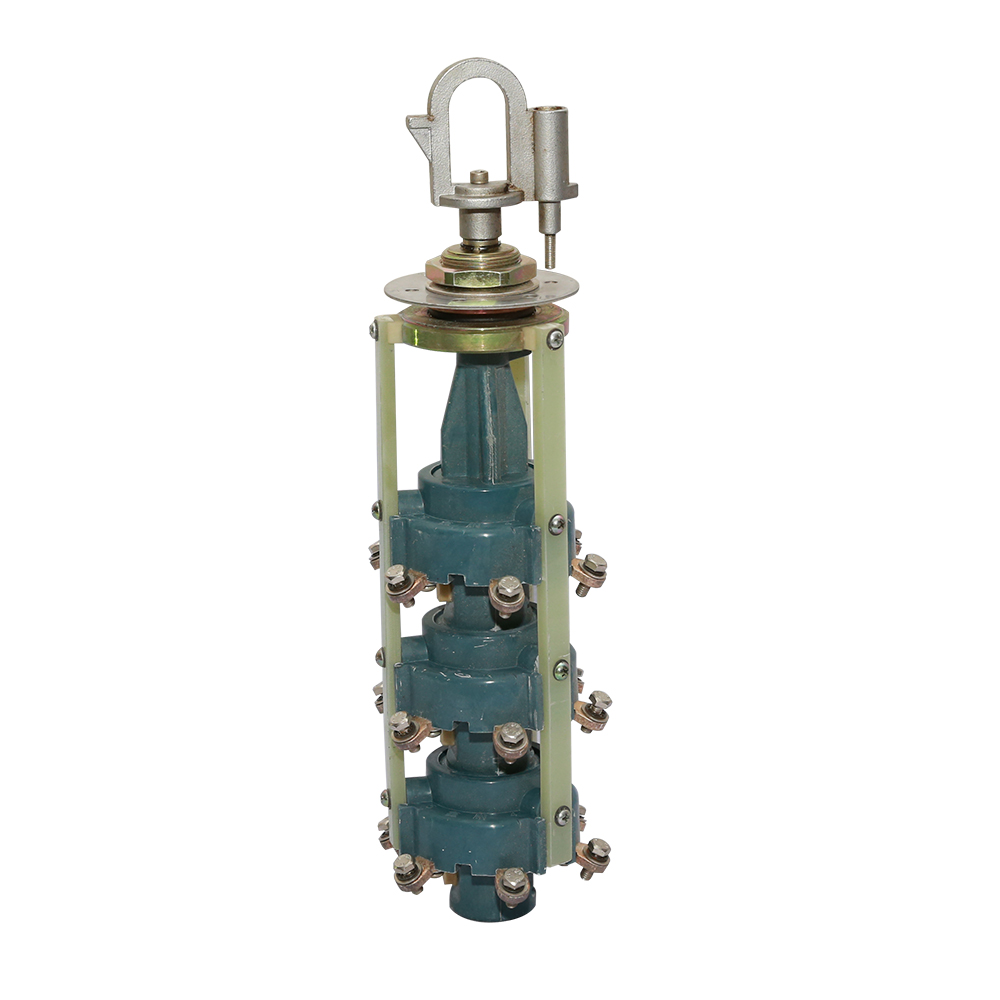

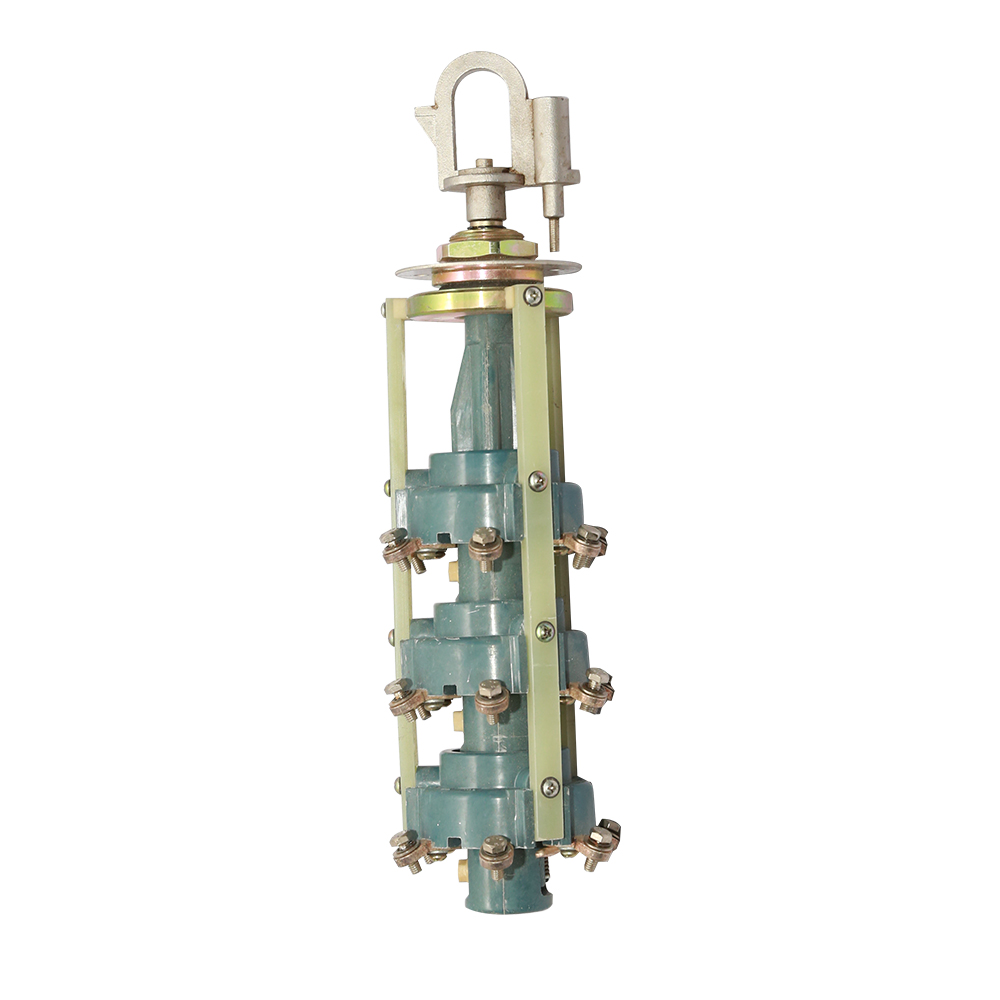

本开关是用于组合变压器在无励磁条件下的分接调换装置。该分接开关适用于设备最高电压10、40.5kV，额定电流63A及以下的三相箱式变压器，操作分接开关时，必须在变压器无励磁状态下进行。
This instruction applies to WSP |I 2 63/10~40.5-6x5 type of de-energized tap-changer for pad-mounted transformer specifically used to change its step positions under no-energized condition，the switch is suitable for three-phase pad-mounded transformers with highest voltage for equipment of 12、40.5kV, rated current of 63A and below, it must be operated when the transformer is under de-energized state .

开关型号、安装尺寸对照表

Type of tap change andinstalation sizechart
