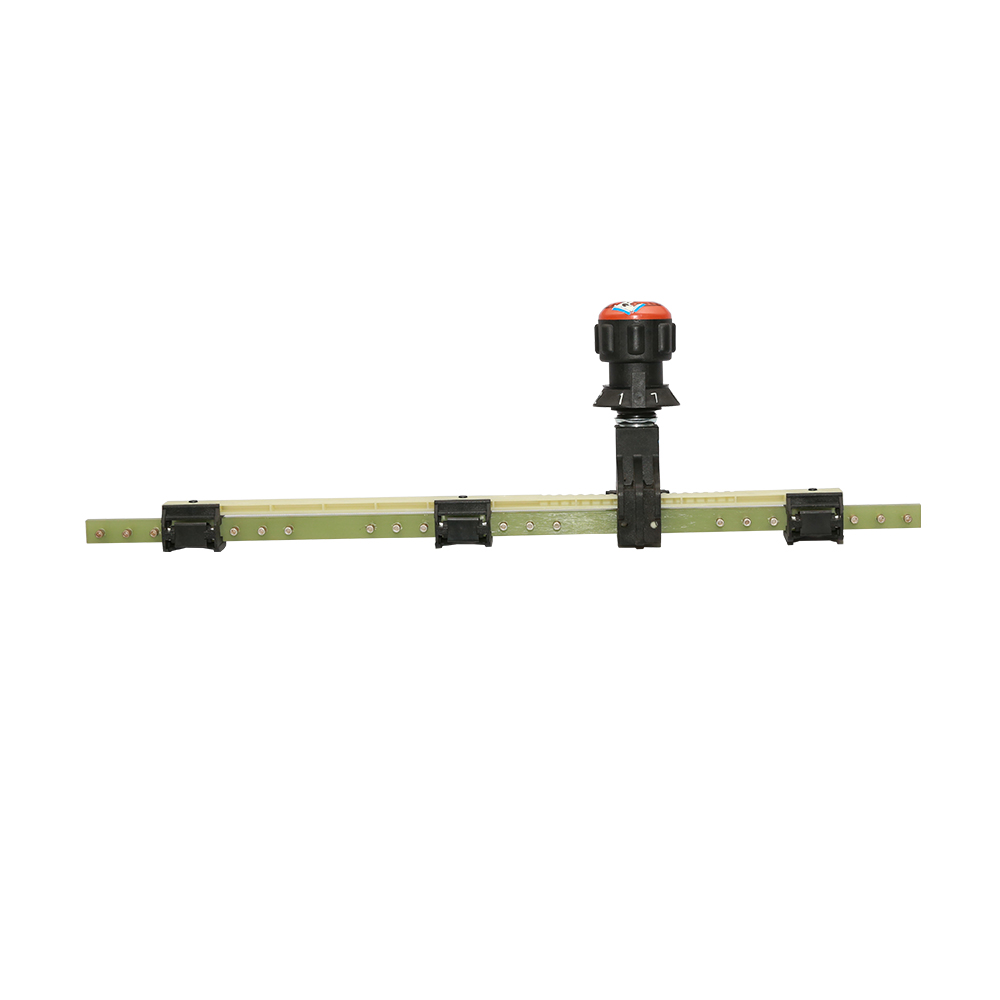

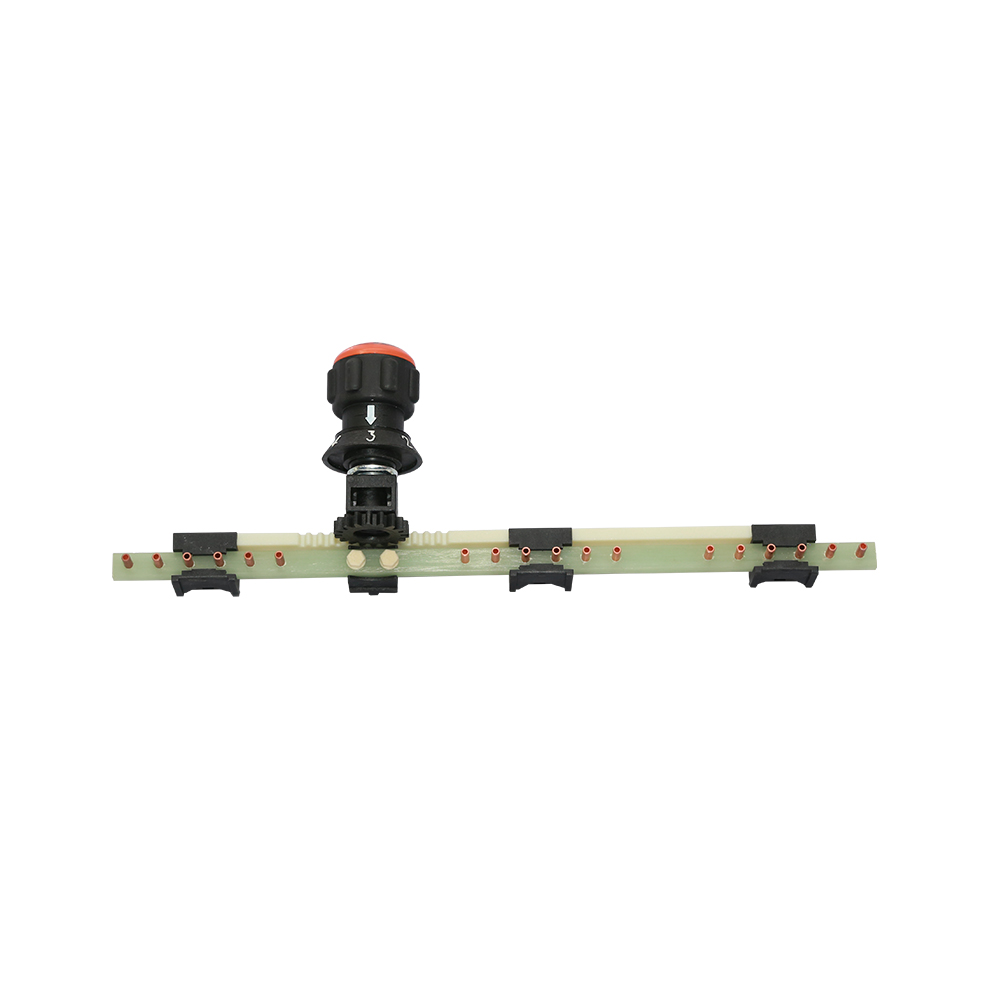

WSTII4系列条型无励磁分接开关
WSTII4 Series linear form de-energized tap-changer
该型开关操作机构共有二型，分别如下，未注明情况下开关配置B型
This type switch operating mechanism has two types,respectively as follows,without indicating ,the switch configuration type is B

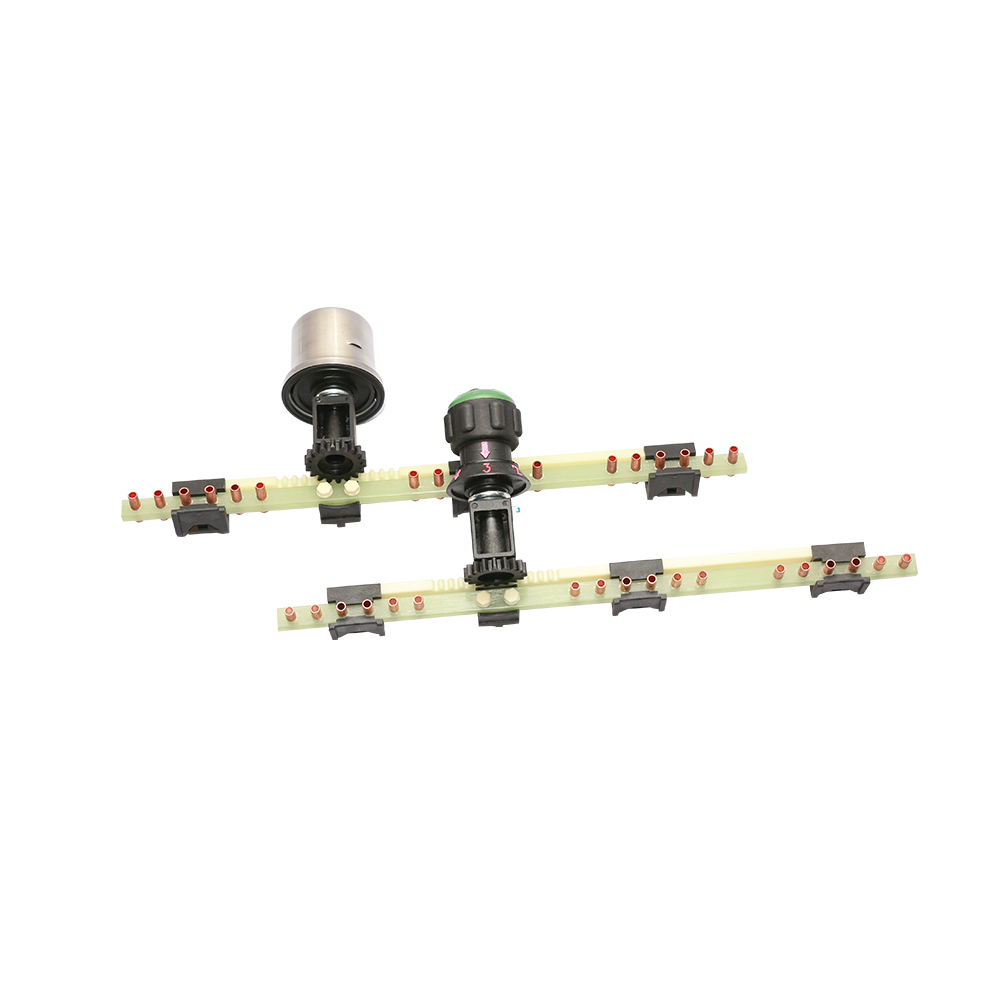

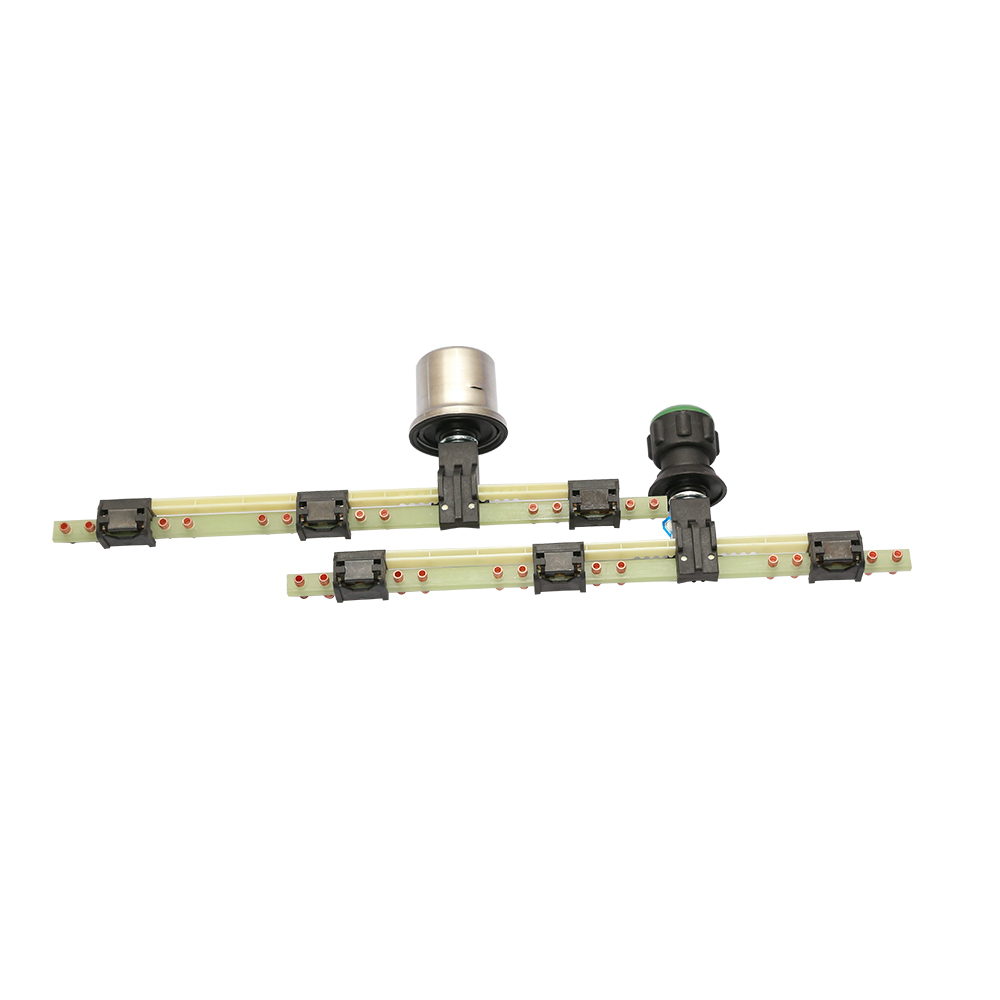

WST II 4T系列条型无励磁分接开关
WST II 4T Series linear form de-energized tap-changer
开关型号、安装尺寸对照表
Type of tap change and instal tion sizechart
| 开关型号Type oftap-changer | 安装尺寸(mm) Install dimension(mm) | 箱盖开孔ΦD(mm) Holes ontank coverΦD(mm) | |||||
| H | L | L1 | 1 | Φd1 | Φd2 | ||
| WSTII4：30/10-4x3T | 347 | 55 | 18 | Φ3.1 | Φ5 | Φ20 | |
| WSTⅡ4：30/10-6x5T | 455 | ||||||
| WSTII4：30/10-8x7T | 563 | ||||||
| WSTⅡ4：30/33-6x5T | 530 | ||||||
| WSTⅡ4：63/10-6x5T | 455 | Φ5.1 | Φ7 | ||||
| WSTⅡ4：63/35-6x5T | 530 | 80 | |||||
| WSTⅡ4：63/40.5-6x5T | 530 | ||||||
